Today we’ll be taking a look at the Seagate BlackArmor NAS110 Network Attached Storage which has a single 3.5″ hard drive and 2x USB, it’s a pretty basic NAS. The date code is 2010/10th week.

IMG_3719 IMG_3720 IMG_3723

Once the case comes off, you take the hard drive out and then slide out the PCB.

IMG_3724 IMG_3725

The top side of board looks like it has a lot going on but it’s more just all the part labels that make it seem that way.

IMG_3726 ledhorz

We’ve got a 3V coin cell for a RTC, 2x chips most likely to be SMPS with a mosfet chip labelled 4468 BA012X / 4712 BV0226 as they are near the inductors, an APL1085 3.3V / adjustable 3A LDO and an APL5930 3A LDO. Something small that stood out to me was an SMD LED which emits its light horizontally instead of vertically.

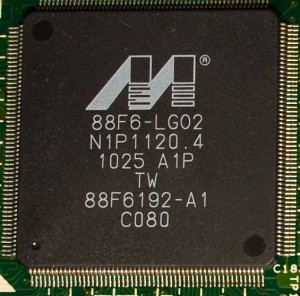

1. Marvell ARM CPU
Up to 800MHz with 256KB L2 Cache. It has a DDR controller, security engine, PCI Express, SATA, USB and Ethernet support and other misc things such as UART, SPI, RTC, SD I/O, Audio, etc. Running from a 25MHz / 12MHz crystal.
88F619x_Hardware / 88F6180_Function

88F6192

2. Hynix 1Gbit DDR2 SDRAM
H5PS1G63EFR

H5PS1G63EFR

3. Samsung 256Mbit Flash
Was labelled with 1000.1081
K9F5608U0D

K9F5608U0D

4. Gensys USB 2 Hub Controller
GL850G

GL850G

5. Marvell Gigabit Ethernet Transceiver
Running from a 25MHz crystal
88E1116R

88E1116R

6. Maxim Step-Down Power Controller
Provides 5V/3.3V or 1.5V/1.05V with 6V to 24V input
MAX17020

MAX17020

And that’s all.
